Transformador do controle de fase monofásica

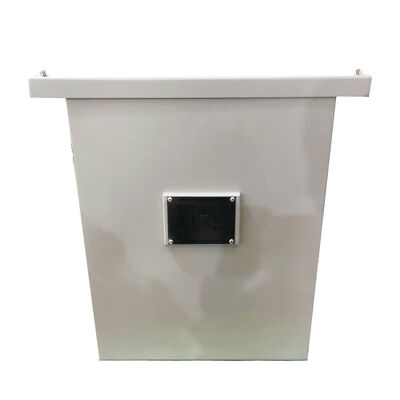

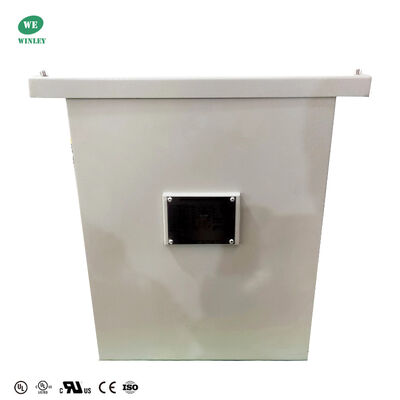

15KVA Single Phase Encapsulated Dry Type Transformer 480V to 120V with NEMA 4X Stainless Steel Enclosure

Todas as categorias

Transformador de três fases montado em uma plataforma

Transformador montado numa plataforma de fase única

Transformador montado em poste

Transformador de bobina fundida

Transformador do isolamento de UPS

Tipo seco trifásico transformador

Transformador trifásico do isolamento

Transformador médico do isolamento

Transformador industrial do controle

Transformador do controle de fase monofásica

Transformador Toroidal do isolamento

Reator trifásico

Contacte-nos

Mr. Steven

steven@winley-electric.com

86-18650108051

Contacte agora

15KVA Single Phase Encapsulated Dry Type Transformer 480V to 120V with NEMA 4X Stainless Steel Enclosure

Nome da marca:	WINLEY
Número do modelo:	DG-15KVA
Quantidade mínima:	1Unit
preço:	$500~$60000/Unit
Detalhes da embalagem:	caixa de madeira compensada
Condições de pagamento:	T/T

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ISO,CE,UL/cUL

Número do modelo:

DG-15KVA

Tipo:

Transformador encapsulado monofásico

Capacidade:

15 KVA

Tensão de entrada:

Tensão de saída:

Incluir:

NEMA 4X 304 SS

Classe de isolamento:

Método de resfriamento:

Resfriamento de ar

Habilidade da fonte:

1000 unidades/mês

Destacar:

Dry Type Transformer

Single Phase 480V Dry Type Transformer

15KVA Dry Type Transformer

Descrição do produto

15KVA Single Phase Encapsulated Dry Type Transformer Low Voltage 480V to 120V Glue Filling NEMA 4X 304 SS DOE Efficiency

Single-phase encapsulated (dry-type) transformers use solid insulation to provide electrical insulation and cooling, eliminating oil or liquid-filled insulation. Commonly used indoors for improved fire safety, environmental compatibility, and easier installation, "encapsulated" means the windings and core are embedded in solid potting material.

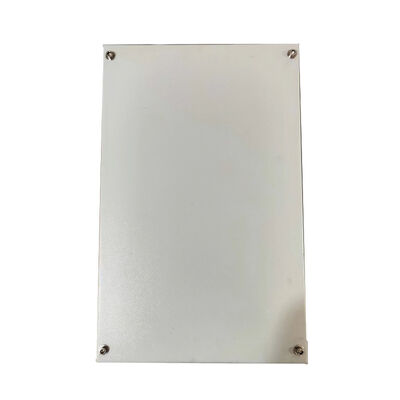

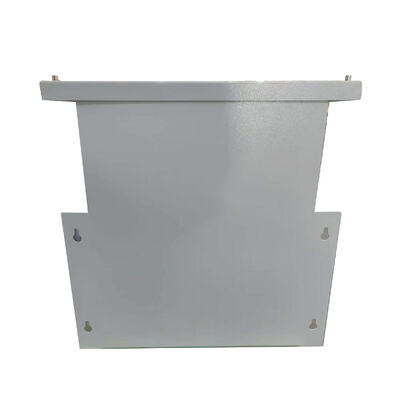

Enclosure: constructed from high-quality 304 stainless steel for superior corrosion resistance, mechanical strength, and lasting appearance, the housing protects internal components from moisture, chemicals, and environmental contaminants common in industrial and outdoor sites. Built to NEMA 4X standards, the watertight, corrosion-resistant enclosure is suitable for outdoor and washdown environments and resists windblown dust and rain, splashing and hose-directed water--making it ideal for coastal, chemical-processing, and other harsh conditions.

Technical Specifications

Model	DG-15
Type	Single-phase encapsulated transformer
Phase	Single phase
Capacity	15KVA

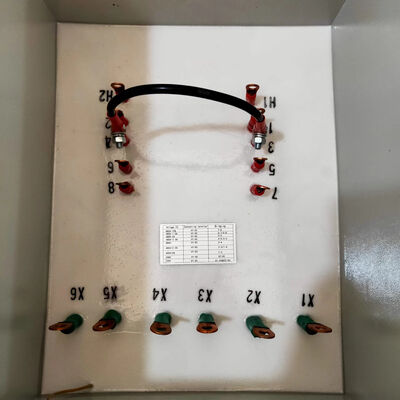

Primary Voltage	480V With 2x2.5% FCAN,4x2.5% FCBN taps
Secondary Voltage	120/208V
Frequency	60Hz
Insulation Level	H
Winding material	Copper/Aluminum
Enclose material	NEMA 4X, 304 stainless steel
Cooling Method	Air cooling
Operating temperature	<115℃
Certification	ISO,CE
Efficiency	>98%

Outline Drawing

Key Benefits

Dry-type insulation: They use solid insulation instead of oil, eliminating the risk of oil leaks and associated environmental hazards.
Improved fire safety: With no flammable liquid present, they are safer for indoor installations and better meet strict fire-safety codes.
Environmentally friendly: The absence of oil reduces the potential for soil or water contamination.
Low maintenance: They avoid oil-related upkeep such as sampling and testing, lowering routine maintenance needs.
Flexible installation: They can be sited indoors without special vaults or containment systems since there's no oil spill risk.
Lower cooling demands: The encapsulation material provides insulation and thermal management, so cooling requirements are generally less than for oil-filled units.

Applications

Single-phase encapsulated transformers are commonly used in various applications, including commercial buildings, industrial facilities, hospitals, schools, data centers, and more.

Production Process
